MACHINERY

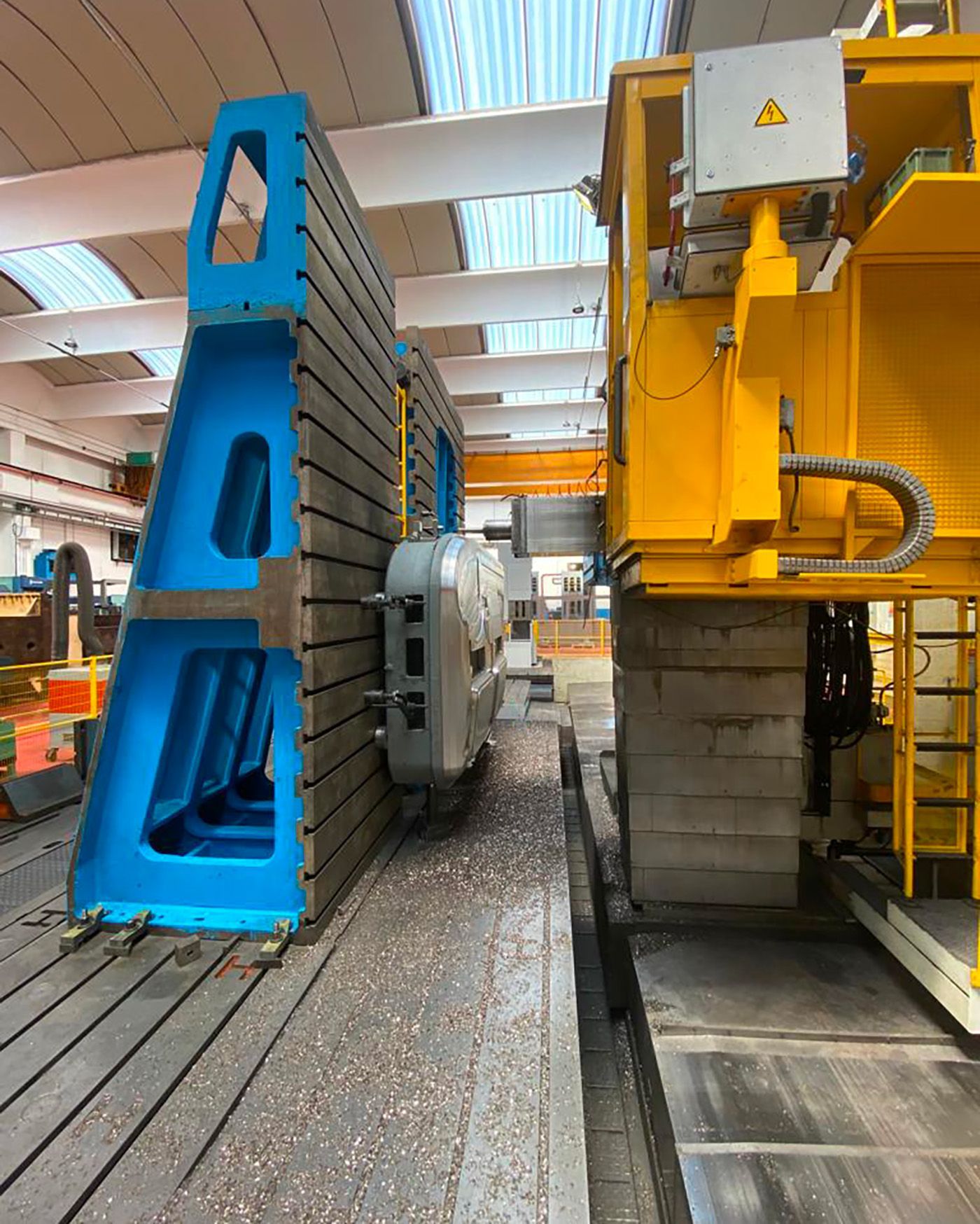

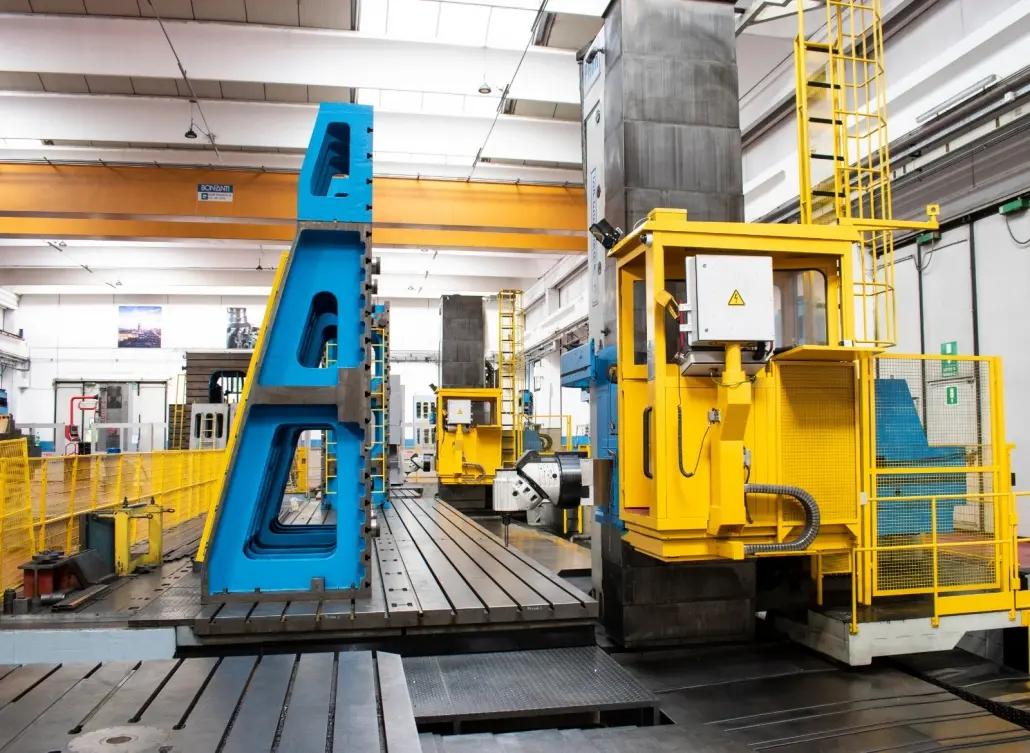

2 Pama Machining Centers Installed Side-by-Side

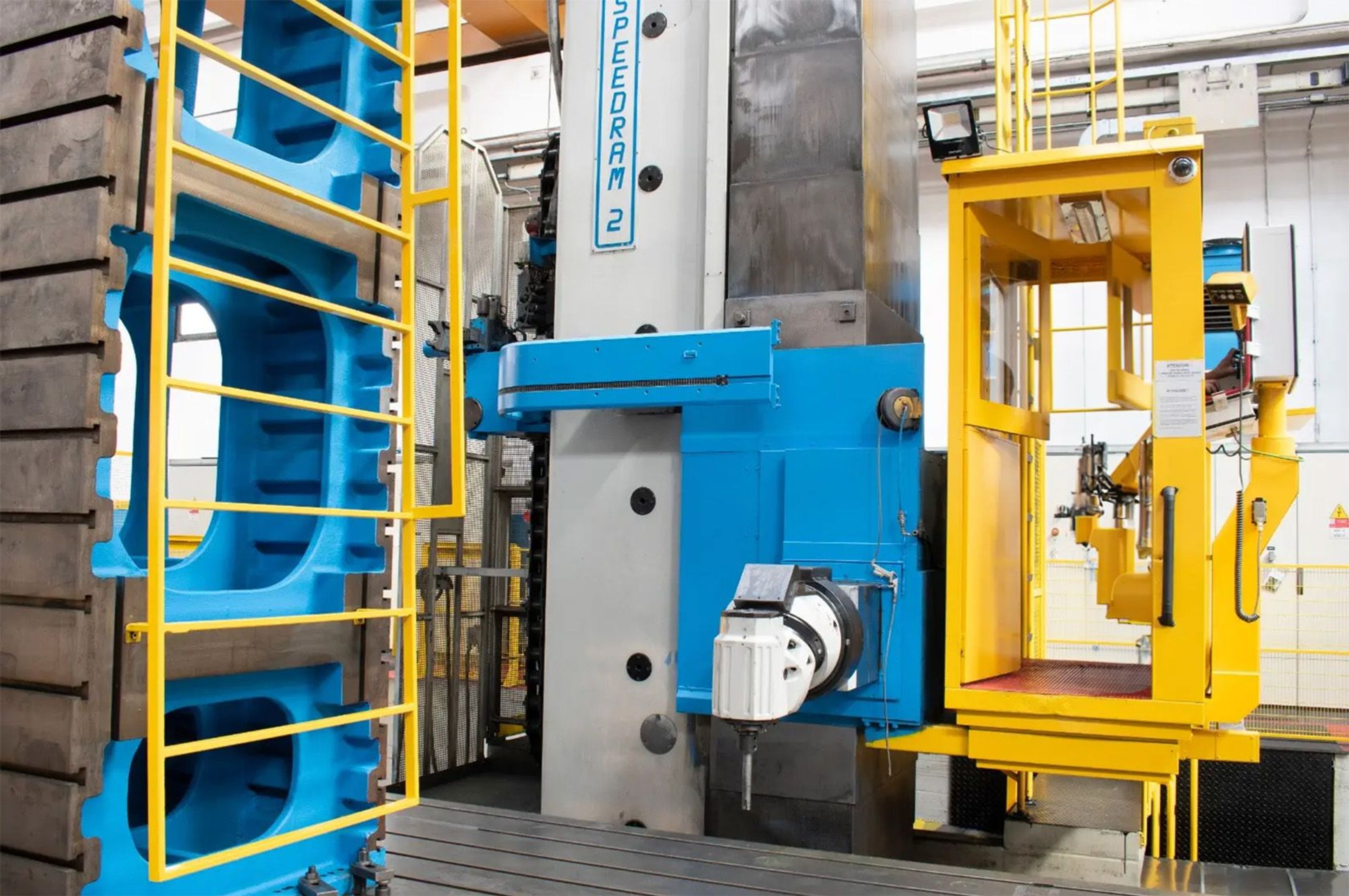

Milling and Boring of large parts - equipment with rotation table for 2D - 3D machining. With our Pama Speedram 2 we can ”build” or modify dies of any size.
SPECIFICATIONS
Longitudinal axis stroke: 20000 mm
Vertical axis stroke: 3600 mm
Spindle Axial Stroke: 700 mm
Spindle Holder Ram Axial stroke: 800 mm
Rotation table available dim: 4000 mm x 3500 mm max. Loading weight 45 Ton.
Spindle Power: 60 Kw
Spindle Diameter: 160 mm
EACH
MACHINE
IS
EQUIPPED
WITH
3
HEADS

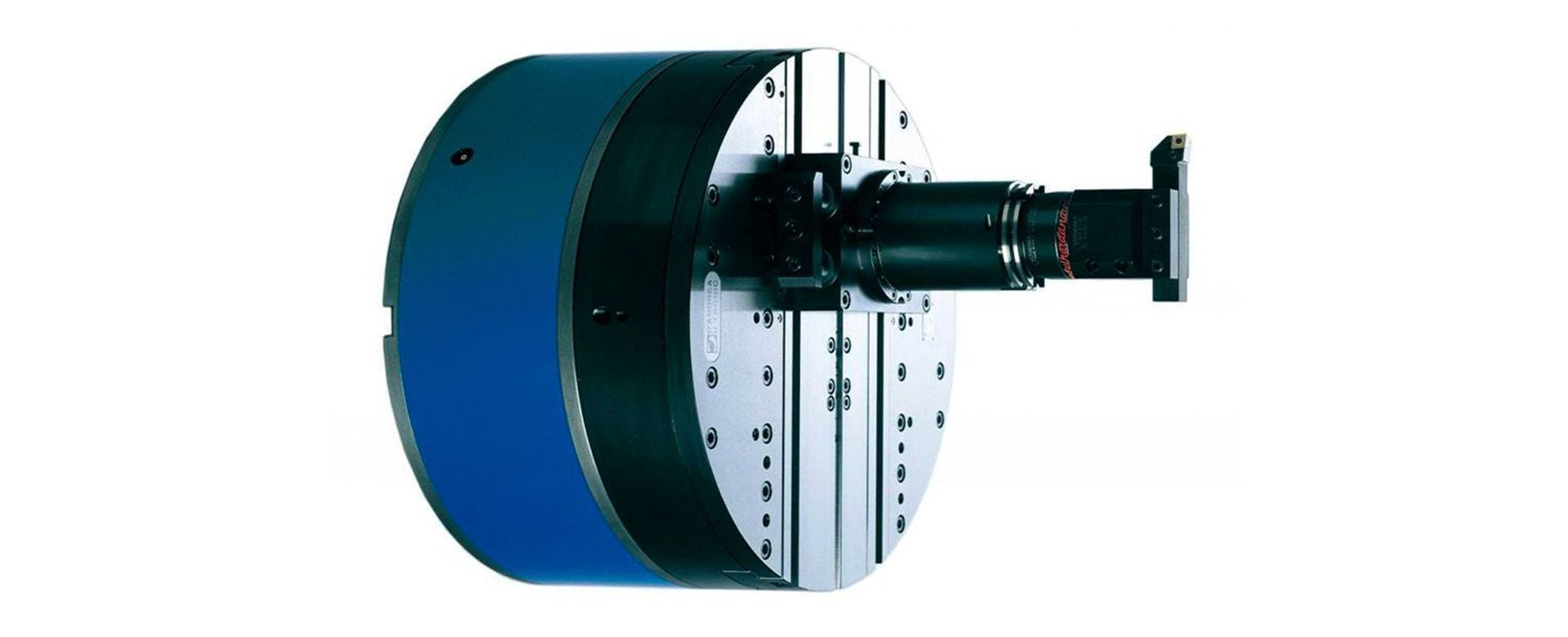

25 KW Millesimal bi – rotative head

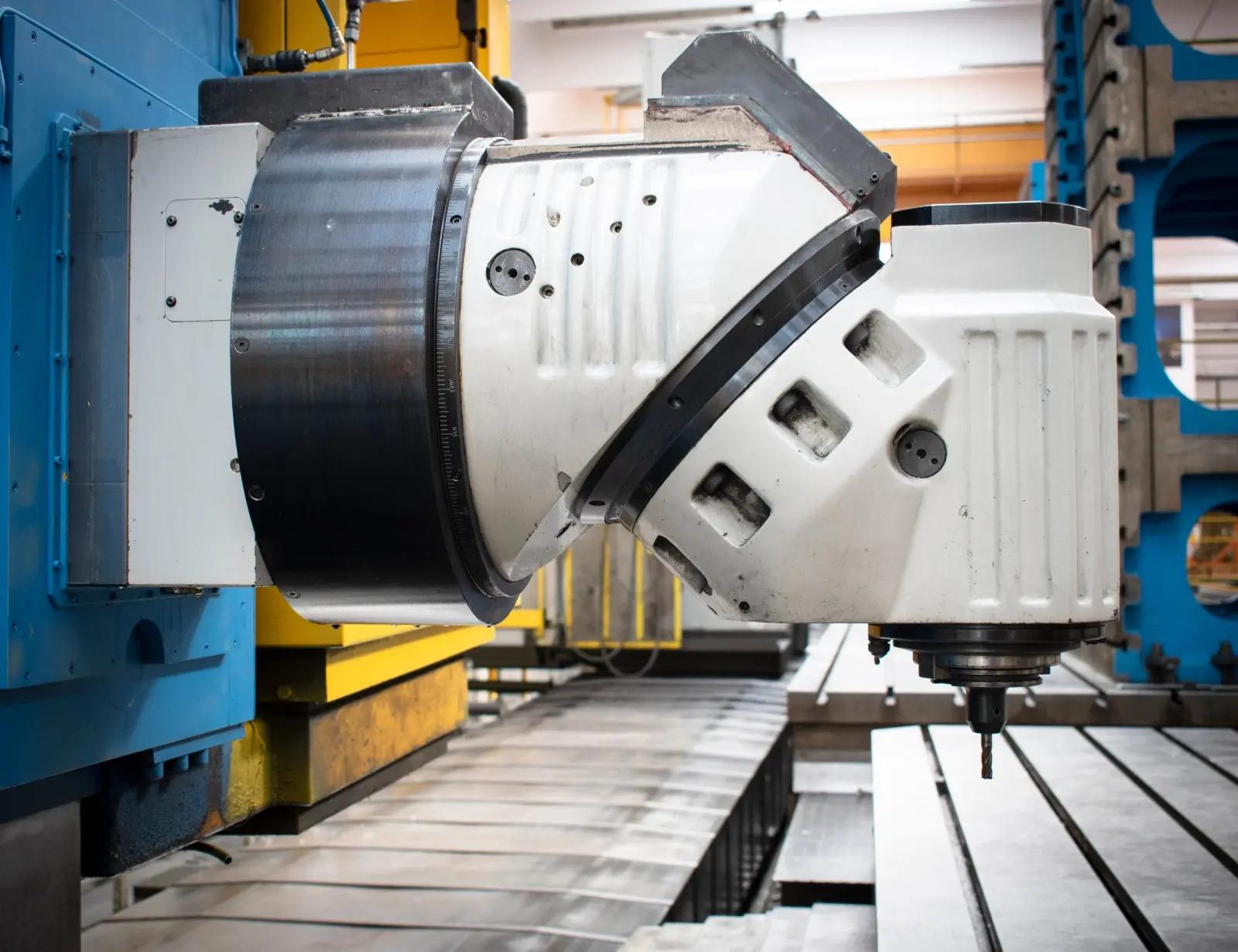

Ortogonal head with Hirt system – 360 positions- 35 KW
D’andrea Head UT8 800 : Maximum diameter 1600 mm – Speed of rotation : 200 rpm
