MACHINERY

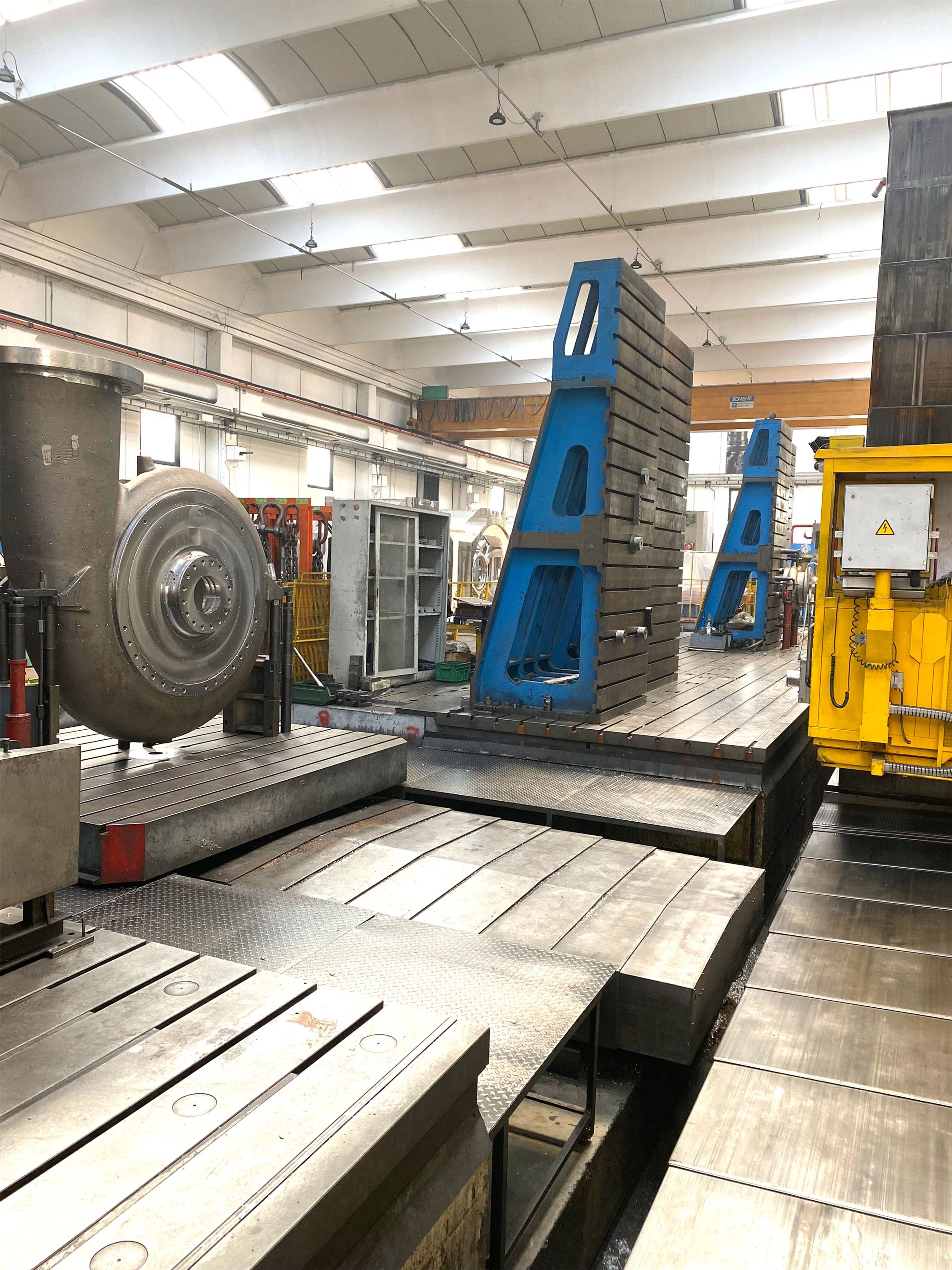

2 Pama Machining Centers Installed Side-by-Side
The dock can load pieces up to 20000 x 3600 x 1700 mm. Dies Car Service can handle the machining of big pieces. Sometimes manage productions and optimize time and processes.
SPECIFICATIONS
Longitudinal axis stroke: 20000 mm
Vertical stroke: 3600 mm
Spindle Axial Stroke: 700 mm
Spindle Holder Ram Axial stroke: 800 mm
Rotation table available dim: 4000 mm x 3500 mm max. Loading weight 45 Ton.
Spindle Power: 60 Kw
Spindle Diameter: 160 mm
EACH
MACHINE
IS
EQUIPPED
WITH
3
HEADS
25 KW Millesimal bi – rotative head
Ortogonal head with Hirt system – 360 positions- 35 KW
D’andrea Head UT8 800: Maximum diameter 1600 mm – Speed of rotation : 200 rpm
Achievements using 2 Pama Machining Centers Installed Side-by-Side

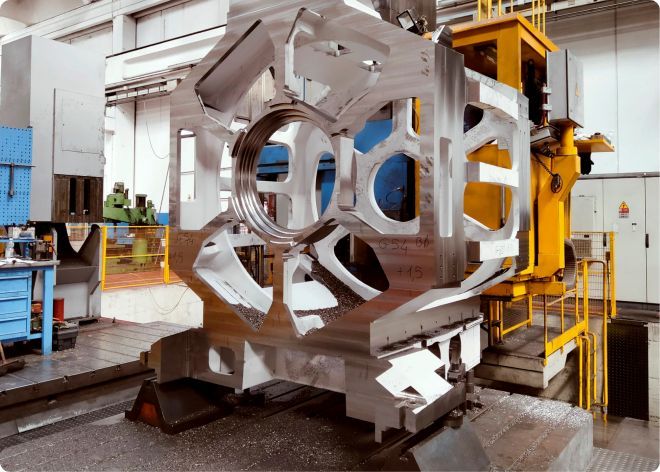

Complete machining of compressor casings for the energy sector
Complete machining of compressor casings for the energy sector. Specifically, this involves combined machining with bi-rotary heads, barrels, and…
Machining work on a Turbo Gear Housing
We carried out milling, drilling, and boring according to the drawing on a Turbo Gear Housing for an important German customer, with a weight of…
Complete machining on CNC structural basis
Complete machining on a CNC structural basis with the following dimensions: 1900 x 1900 x 2200 mm. Cast iron material.
Gallery
A selection of our…
Machining on excavators arms for earth moving sector
Machining on excavators arms for the earth moving sector; in this case we carry out boring diameters up to 110 mm on iron material.…
Machining and Assembly on Turbine Case for Energy sector
The energy sector represents one of the most important “fields” where Dies Car Service operates. We carry out milling, drilling, boring diameters,…

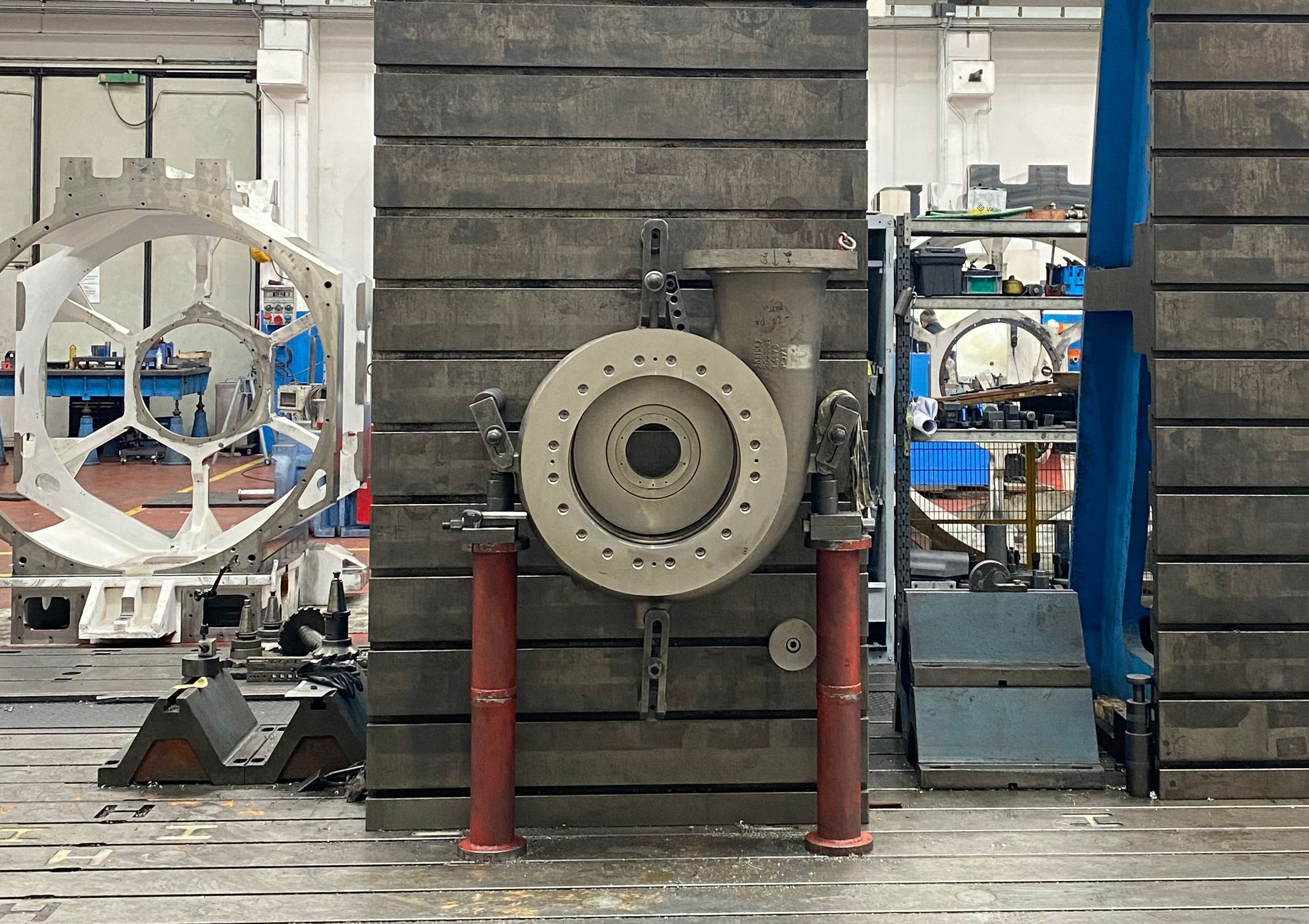

Drilling, milling and boring on Volute Casings for the energy sector
For the best players in the energy sector, we machine different dimensions Volute Casings. The eights of the castings can change from 900 mm up to…
